$TRANS_EVENTW

Forces a transaction state change for a transaction in which there is at least one RM participant that has specified the DDTM$M_COORDINATOR flag.
$TRANS_EVENTW always waits for the request to complete before returning to the caller. Other than this, it is identical to $TRANS_EVENT.

Format

SYS$TRANS_EVENTW [efn] ,[flags] ,iosb ,[astadr] ,[astprm] ,tid ,rm_id ,tx_event

C Prototype

int sys$trans_eventw (unsigned int efn, unsigned int flags, struct _iosb *iosb, void (*astadr)(__unknown_params), __int64 astprm, )

$TRNLNM

Returns information about a logical name.
On Alpha systems, this service accepts 64-bit addresses.

Format

SYS$TRNLNM [attr] ,tabnam ,lognam ,[acmode] ,[itmlst]

C Prototype

int sys$trnlnm (unsigned int *attr, void *tabnam, void *lognam, unsigned char *acmode, void *itmlst);

Arguments

attr

OpenVMS usage: mask_longword

type: longword (unsigned)

access: read only

mechanism: by 32- or 64-bit reference (Alpha)

mechanism: by 32-bit reference (VAX)

Attributes controlling the search for the logical name. The attr argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a longword bit mask specifying these attributes.
Each bit in the longword corresponds to an attribute and has a symbolic name. The $LNMDEF macro defines these symbolic names. To specify an attribute, use its symbolic name or set its corresponding bit. All undefined bits in the longword have the value 0.
If you do not specify this argument or specify it as the value 0 (no bits set), the following attribute is not used:

Attribute Description

LNM$M_CASE_BLIND If set, $TRNLNM does not distinguish between uppercase and lowercase letters in the logical name to be translated.

LNM$M_INTERLOCKED If set, $TRNLNM does not translate the current logical name until any clusterwide logical name modifications in progress are completed. This attribute is not set by default. If your application requires translation using the most recent definition of a clusterwide logical name, use this attribute to ensure that the translation is stalled until all pending modifications have been made.

tabnam

OpenVMS usage: logical_name

type: character-coded text string

access: read only

mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)

mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

Name of the logical name table or the name of a searchlist logical name that translates the name of one or more tables in which to search for the specified logical name. The tabnam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a descriptor pointing to this name. This argument is required.
The name must be entered in uppercase letters. (This requirement differs from the $CRELNT system service, which automatically changes tabnam to uppercase.)
If the table name is not the name of a logical name table, it is assumed to be a logical name and is translated iteratively until either the name of a logical name table is found or the number of translations allowed by the system have been performed. If the table name translates to a list of logical name tables, the tables are searched in the specified order.
lognam

OpenVMS usage: logical_name

type: character-coded text string

access: read only

mechanism: by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)

mechanism: by 32-bit descriptor--fixed-length string descriptor (VAX)

Logical name about which information is to be returned. The lognam argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a descriptor pointing to the logical name string. This argument is required.
acmode

OpenVMS usage: access_mode

type: byte (unsigned)

access: read only

mechanism: by 32- or 64-bit reference (Alpha)

mechanism: by 32-bit reference (VAX)

Access mode to be used in the translation. The acmode argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a byte specifying the access mode. The $PSLDEF macro defines symbolic names for the four access modes.
When you specify the acmode argument, $TRNLNM ignores all names (both logical names and table names) at access modes less privileged than the specified access mode. The specified access mode is not checked against that of the caller.
If you do not specify acmode, $TRNLNM performs the translation without regard to access mode; however, the translation process proceeds from the outermost to the innermost access modes. Thus, if two logical names with the same name but at different access modes exist in the same table, $TRNLNM translates the name with the outermost access mode.
itmlst

OpenVMS usage: 32-bit item_list_3 or 64-bit item_list_64b

type: longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit

access: read only

mechanism: by 32- or 64-bit reference (Alpha)

mechanism: by 32-bit reference (VAX)

Item list describing the information that $TRNLNM is to return. The itmlst argument is the 32-bit address (on VAX systems) or the 32- or 64-bit address (on Alpha systems) of a list of item descriptors, each of which specifies or controls an item of information to be returned. An item list in 32-bit format is terminated by a longword of 0; an item list in 64-bit format is terminated by a quadword of 0. All items in an item list must be of the same format---either 32-bit or 64-bit.

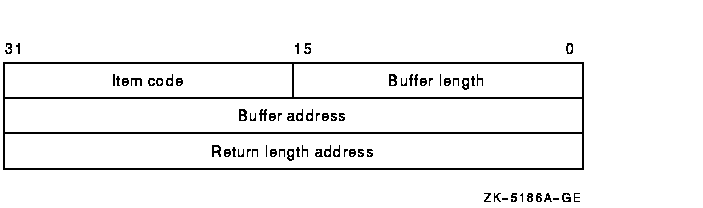

The following diagram depicts the 32-bit format of a single item descriptor:

Attribute	Description
LNM$M_CASE_BLIND	If set, $TRNLNM does not distinguish between uppercase and lowercase letters in the logical name to be translated.
LNM$M_INTERLOCKED	If set, $TRNLNM does not translate the current logical name until any clusterwide logical name modifications in progress are completed. This attribute is not set by default. If your application requires translation using the most recent definition of a clusterwide logical name, use this attribute to ensure that the translation is stalled until all pending modifications have been made.

The following table defines the item descriptor fields for 32-bit item list entries:

Descriptor Field Definition

Buffer length A word specifying the number of bytes in the buffer pointed to by the buffer address field.

Item code A word containing a symbolic code describing the nature of the information currently in the buffer, to be returned in the buffer, or to be returned by the buffer pointed to by the buffer address field.

Buffer address A longword containing the 32-bit address of the buffer that specifies or receives the information.

Return length address A longword containing the 32-bit address of a word specifying the actual length (in bytes) of the information returned by $TRNLNM in the buffer pointed to by the buffer address field.

Descriptor Field	Definition
Buffer length	A word specifying the number of bytes in the buffer pointed to by the buffer address field.
Item code	A word containing a symbolic code describing the nature of the information currently in the buffer, to be returned in the buffer, or to be returned by the buffer pointed to by the buffer address field.
Buffer address	A longword containing the 32-bit address of the buffer that specifies or receives the information.
Return length address	A longword containing the 32-bit address of a word specifying the actual length (in bytes) of the information returned by $TRNLNM in the buffer pointed to by the buffer address field.

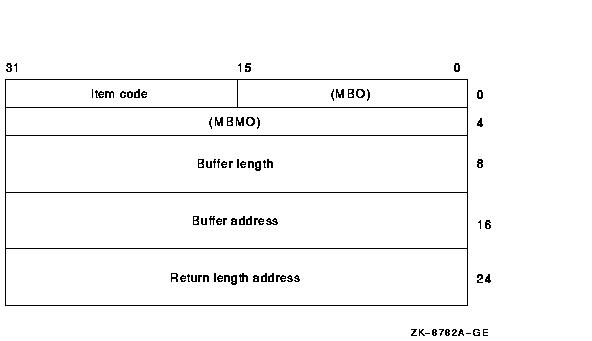

The following diagram depicts the 64-bit format of a single item descriptor:

The following table defines the item descriptor fields for 64-bit item list entries:

Descriptor Field Definition

MBO The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries.

Item code A word containing a symbolic code describing the nature of the information currently in the buffer, to be returned in the buffer, or to be returned by the buffer pointed to by the buffer address field.

MBMO The field must contain a --1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries.

Buffer address A quadword containing the 64-bit address of the buffer that specifies or receives the information.

Return length address A quadword containing the 64-bit address of a word specifying the actual length (in bytes) of the information returned by $TRNLNM in the buffer pointed to by the buffer address field.

Descriptor Field	Definition
MBO	The field must contain a 1. The MBO and MBMO fields are used to distinguish 32-bit and 64-bit item list entries.
Item code	A word containing a symbolic code describing the nature of the information currently in the buffer, to be returned in the buffer, or to be returned by the buffer pointed to by the buffer address field.
MBMO	The field must contain a --1. The MBMO and MBO fields are used to distinguish 32-bit and 64-bit item list entries.
Buffer address	A quadword containing the 64-bit address of the buffer that specifies or receives the information.
Return length address	A quadword containing the 64-bit address of a word specifying the actual length (in bytes) of the information returned by $TRNLNM in the buffer pointed to by the buffer address field.

Item Codes

LNM$_ACMODE
Returns the access mode that was associated with the logical name at the time of its creation. The buffer address field in the item descriptor is the address of a byte in which $TRNLNM writes the access mode.
LNM$_ATTRIBUTES
Returns the attributes of the logical name and the equivalence name associated with the current LNM$_INDEX value.
The buffer address field of the item descriptor points to a longword bit mask wherein each bit corresponds to an attribute. The $TRNLNM service sets the corresponding bit for each attribute possessed by either the logical name or the equivalence name.
The $LNMDEF macro defines the following symbolic names for these attributes:

Attribute Description

LNM$M_CONCEALED If $TRNLNM sets this bit, the equivalence name at the current index value for the logical name is a concealed logical name, as interpreted by OpenVMS RMS.

LNM$M_CONFINE If $TRNLNM sets this bit, the logical name is not copied from a process to any of its spawned subprocesses. The DCL command SPAWN creates subprocesses.

LNM$M_CRELOG If $TRNLNM sets this bit, the logical name was created using the $CRELOG system service.

LNM$M_EXISTS If $TRNLNM sets this bit, an equivalence name with the specified index does exist.

LNM$M_NO_ALIAS If $TRNLNM sets this bit, the name of the logical name cannot be given to another logical name defined in the same table at an outer access mode.

LNM$M_TABLE If $TRNLNM sets this bit, the logical name is the name of a logical name table.

LNM$M_CLUSTERWIDE If $TRNLNM sets this bit, the logical name is in a clusterwide table.

LNM$M_TERMINAL If $TRNLNM sets this bit, the equivalence name for the logical name cannot be subjected to further (recursive) logical name translation.

LNM$_CHAIN
Processes another item list immediately following the current item list. The LNM$_CHAIN item code must be the last one in the current item list. The buffer address field of the item descriptor points to the next item list.
You can chain together 32-bit and 64-bit item lists.
LNM$_INDEX
Searches for an equivalence name that has the specified index value. The buffer address field of the item descriptor points to a longword containing a user-specified integer in the range 0 to 127.
If you do not specify this item code, the implied value of LNM$_INDEX is 0 and $TRNLNM returns information about the equivalence name at index 0.
Because a logical name can have more than one equivalence name and each equivalence name is identified by an index value, you should specify the LNM$_INDEX item code first in the item list, before specifying LNM$_STRING, LNM$_LENGTH, or LNM$_ATTRIBUTES. These item codes return information about the equivalence name identified by the current index value, LNM$_INDEX.
LNM$_LENGTH
Returns the length of the equivalence name string corresponding to the current LNM$_INDEX value. The buffer address field in the item descriptor is the address of the longword in which $TRNLNM writes this length.
If an equivalence name does not exist at the current LNM$_INDEX value, $TRNLNM returns the value 0 to the longword pointed to by the return length field of the item descriptor.
LNM$_MAX_INDEX
Each equivalence name for the logical name has an index associated with it. When you specify LNM$_MAX_INDEX, $TRNLNM returns a value equal to the largest equivalence name index. The buffer address field in the item descriptor is the address of a longword in which $TRNLNM writes this value. If the logical name exists but has no equivalence name (and, therefore, no index value), $TRNLNM returns a value of --1.
LNM$_STRING
Returns the equivalence name string corresponding to the current LNM$_INDEX value. The buffer address field of the item descriptor points to a buffer containing this string. The return length address field of the item descriptor contains an address of a word that contains the length of this string in bytes. The maximum length of the equivalence name string is 255 characters.
If an equivalence name does not exist at the current LNM$_INDEX value, $TRNLNM returns the value 0 in the return length address field of the item descriptor.
LNM$_TABLE
Returns the name of the table containing the logical name being translated. The buffer address field of the item descriptor points to the buffer in which $TRNLNM returns this name. The return length address field of the item descriptor specifies the address of a word in which $TRNLNM writes the size of the table name. The maximum length of the table name is 31 characters.

Attribute	Description
LNM$M_CONCEALED	If $TRNLNM sets this bit, the equivalence name at the current index value for the logical name is a concealed logical name, as interpreted by OpenVMS RMS.
LNM$M_CONFINE	If $TRNLNM sets this bit, the logical name is not copied from a process to any of its spawned subprocesses. The DCL command SPAWN creates subprocesses.
LNM$M_CRELOG	If $TRNLNM sets this bit, the logical name was created using the $CRELOG system service.
LNM$M_EXISTS	If $TRNLNM sets this bit, an equivalence name with the specified index does exist.
LNM$M_NO_ALIAS	If $TRNLNM sets this bit, the name of the logical name cannot be given to another logical name defined in the same table at an outer access mode.
LNM$M_TABLE	If $TRNLNM sets this bit, the logical name is the name of a logical name table.
LNM$M_CLUSTERWIDE	If $TRNLNM sets this bit, the logical name is in a clusterwide table.
LNM$M_TERMINAL	If $TRNLNM sets this bit, the equivalence name for the logical name cannot be subjected to further (recursive) logical name translation.

Description

The Translate Logical Name service returns information about a logical name. You need read access to a shareable logical name table to translate a logical name located in that shareable logical name table.
For conventions regarding logical names for process-permanent files, refer to the chapter "Logical Name Services" in the OpenVMS Programming Concepts Manual.
Required Access or Privileges

Read access is required.
Required Quota

None
Related Services

$ADJSTK, $ADJWSL, $CRELNM, $CRELNT, $CRETVA, $CRMPSC, $DELLNM, $DELTVA, $DGBLSC, $EXPREG, $LCKPAG, $LKWSET, $MGBLSC, $PURGWS, $SETPRT, $SETSTK, $SETSWM, $ULWSET, $UPDSEC, $UPDSECW

Condition Values Returned

SS$_NORMAL The service completed successfully. An equivalence name for the logical name has been found.

SS$_ACCVIO The service cannot access the location or locations specified by one or more arguments.

SS$_BADPARAM One or more arguments have an invalid value, or a logical name table name or logical name was not specified. Or, an item list containing both 32-bit and 64-bit item list entries was found.

SS$_BUFFEROVF The service completed successfully. The buffer length field in an item descriptor specified an insufficient value, so the buffer was not large enough to hold the requested data.

SS$_IVLOGNAM The tabnam argument or lognam argument specifies a string whose length is not in the required range of 1 through 255 characters.

SS$_IVLOGTAB The tabnam argument does not specify a logical name table.

SS$_NOLOGNAM The logical name was not found in the specified logical name table or tables.

SS$_NOPRIV The caller lacks the necessary privilege to access the specified name.

SS$_TOOMANYLNAM Logical name translation of the table name exceeded the allowable depth (10 translations).

$TRUNCATE

The Truncate service shortens a sequential file.
Refer to the OpenVMS Record Management Services Reference Manual for additional information about this service.

$TSTCLUEVT

Simulates the occurrence of a cluster configuration event to test the functionality of the notification AST.

Format

SYS$TSTCLUEVT [handle] ,[acmode] ,[event]

C Prototype

int sys$tstcluevt (unsigned int *handle, unsigned int acmode, unsigned int event);

Arguments

handle

OpenVMS usage: identifier

type: quadword (unsigned)

access: read only

mechanism: by reference

Identification of the asynchronous system trap (AST) to be tested. The handle argument uniquely identifies the request and is returned when the $SETCLUEVT service is called.
acmode

OpenVMS usage: access_mode

type: longword (unsigned)

access: read only

mechanism: by value

Access mode for which a configuration event AST is to be triggered. The acmode argument is a longword containing the access mode.
Each access mode has a symbolic name. The $PSLDEF macro defines the following symbols for the four access modes:

Symbol Access Mode

PSL$C_KERNEL Kernel

PSL$C_EXEC Executive

PSL$C_SUPER Supervisor

PSL$C_USER User

event

OpenVMS usage: event_code

type: longword (unsigned)

access: read only

mechanism: by value

Event code indicating the type of configuration for which an AST is to be triggered.
Each event type has a symbolic name. The $CLUEVTDEF macro defines the following symbolic names:

Symbolic Name Description

CLUEVT$C_ADD One or more OpenVMS nodes have been added to the OpenVMS Cluster system.

CLUEVT$C_REMOVE One or more OpenVMS nodes have been removed from the OpenVMS Cluster system.

Symbol	Access Mode
PSL$C_KERNEL	Kernel
PSL$C_EXEC	Executive
PSL$C_SUPER	Supervisor
PSL$C_USER	User

Symbolic Name	Description
CLUEVT$C_ADD	One or more OpenVMS nodes have been added to the OpenVMS Cluster system.
CLUEVT$C_REMOVE	One or more OpenVMS nodes have been removed from the OpenVMS Cluster system.

Description

The Test Cluster Event service simulates the occurrence of a cluster configuration event to test the functionality of the notification ASTs. The service allows an application to test itself and must be issued from within the same process as the application being tested. $TSTCLUEVT does not affect other processes in the cluster.
The service will allow one specific AST to be fired via the handle argument, or all ASTs for a specific configuration event via the event argument. Specifying both the event and the handle arguments will return an error.
If the handle argument is specified, the value of the acmode argument must not be greater than the access mode of the caller and must match the mode specified when the $SETCLUEVT service was called.
If the event argument is specified, those ASTs that match the value specified in the acmode argument, or that match the caller's mode, will be triggered.
Required Access or Privileges

None
Required Quota

None
Related Services

$CLRCLUEVT, $SETCLUEVT

Condition Values Returned

SS$_NORMAL The service completed successfully.

SS$_BADPARAM There is an unsatisfactory combination of event and handle parameters, or the event was specified incorrectly.

SS$_NOSUCHOBJ No request was found that matches the description supplied.

$ULKPAG

Unlocks pages that were previously locked in memory by the Lock Pages in Memory ($LCKPAG) service. Locked pages are automatically unlocked and deleted at image exit.

Format

SYS$ULKPAG inadr ,[retadr] ,[acmode]

C Prototype

int sys$ulkpag (struct _va_range *inadr, struct _va_range *retadr, unsigned int acmode);

Arguments

inadr

OpenVMS usage: address_range

type: longword (unsigned)

access: read only

mechanism: by reference

Starting and ending virtual addresses of the pages to be unlocked. The inadr argument is the address of a 2-longword array containing, in order, the starting and ending process virtual addresses.
Only the virtual page number portion of each virtual address is used; the low-order byte-within-page bits are ignored. If the starting and ending virtual addresses are the same, a single page is unlocked.
If more than one page is being unlocked and you need to determine specifically which pages had been previously unlocked, you should unlock the pages one at a time, that is, one page per call to $ULKPAG. The condition value returned by $ULKPAG indicates whether the page was previously unlocked.
retadr

OpenVMS usage: address_range

type: longword (unsigned)

access: write only

mechanism: by reference---array reference or descriptor

Starting and ending process virtual addresses of the pages actually unlocked by $ULKPAG. The retadr argument is the address of a 2-longword array containing, in order, the starting and ending process virtual addresses.
If an error occurs while multiple pages are being unlocked, retadr specifies those pages that were successfully unlocked before the error occurred. If no pages were successfully unlocked, both longwords in the retadr array contain the value --1.
acmode

OpenVMS usage: access_mode

type: longword (unsigned)

access: read only

mechanism: by value

Access mode on behalf of which the request is being made. The acmode argument is a longword containing the access mode. The $PSLDEF macro defines the symbols for the four access modes.
The most privileged access mode used is the access mode of the caller. To unlock any specified page, the resultant access mode must be equal to or more privileged than the access mode of the owner of that page.

Description

The Unlock Pages from Memory service unlocks pages that were previously locked in memory by the Lock Pages in Memory ($LCKPAG) service. Locked pages are automatically unlocked and deleted at image exit.
On Alpha systems, if you are attempting to unlock executable code, you should issue multiple $ULKPAG calls: one to unlock the code pages and others to unlock the linkage section references to these pages.
Required Access or Privileges

To call the $ULKPAG service, a process must have PSWAPM privilege.
Required Quota

None
Related Services

For more information, refer to the chapter on memory management in the OpenVMS Programming Concepts Manual.

Condition Values Returned

SS$_WASCLR The service completed successfully. At least one of the specified pages was previously unlocked.

SS$_WASSET The service completed successfully. All of the specified pages were previously locked.

SS$_ACCVIO The input array cannot be read by the caller; the output array cannot be written by the caller; or a page in the specified range is inaccessible or does not exist.

Contents

Index

privacy and legal statement

4527PRO_114.HTML

OpenVMS usage:	mask_longword
type:	longword (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

OpenVMS usage:	logical_name
type:	character-coded text string
access:	read only
mechanism:	by 32- or 64-bit descriptor--fixed-length string descriptor (Alpha)
mechanism:	by 32-bit descriptor--fixed-length string descriptor (VAX)

OpenVMS usage:	access_mode
type:	byte (unsigned)
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

OpenVMS usage:	32-bit item_list_3 or 64-bit item_list_64b
type:	longword (unsigned) for 32-bit; quadword (unsigned) for 64-bit
access:	read only
mechanism:	by 32- or 64-bit reference (Alpha)
mechanism:	by 32-bit reference (VAX)

SS$_NORMAL	The service completed successfully. An equivalence name for the logical name has been found.
SS$_ACCVIO	The service cannot access the location or locations specified by one or more arguments.
SS$_BADPARAM	One or more arguments have an invalid value, or a logical name table name or logical name was not specified. Or, an item list containing both 32-bit and 64-bit item list entries was found.
SS$_BUFFEROVF	The service completed successfully. The buffer length field in an item descriptor specified an insufficient value, so the buffer was not large enough to hold the requested data.
SS$_IVLOGNAM	The tabnam argument or lognam argument specifies a string whose length is not in the required range of 1 through 255 characters.
SS$_IVLOGTAB	The tabnam argument does not specify a logical name table.
SS$_NOLOGNAM	The logical name was not found in the specified logical name table or tables.
SS$_NOPRIV	The caller lacks the necessary privilege to access the specified name.
SS$_TOOMANYLNAM	Logical name translation of the table name exceeded the allowable depth (10 translations).

OpenVMS usage:	identifier
type:	quadword (unsigned)
access:	read only
mechanism:	by reference

OpenVMS usage:	event_code
type:	longword (unsigned)
access:	read only
mechanism:	by value

SS$_NORMAL	The service completed successfully.
SS$_BADPARAM	There is an unsatisfactory combination of event and handle parameters, or the event was specified incorrectly.
SS$_NOSUCHOBJ	No request was found that matches the description supplied.

OpenVMS usage:	address_range
type:	longword (unsigned)
access:	read only
mechanism:	by reference

SS$_WASCLR	The service completed successfully. At least one of the specified pages was previously unlocked.
SS$_WASSET	The service completed successfully. All of the specified pages were previously locked.
SS$_ACCVIO	The input array cannot be read by the caller; the output array cannot be written by the caller; or a page in the specified range is inaccessible or does not exist.
