Document revision date: 15 July 2002

On Alpha systems, the mechanism array returns much the same data as it does on VAX systems, though its format is changed. The mechanism array returned on Alpha systems preserves the contents of a larger set of integer scratch registers as well as the Alpha floating-point scratch registers. In addition, because Alpha registers are 64 bits long, the mechanism array is constructed of quadwords (64 bits), not longwords (32 bits) as it is on VAX systems. Figure 9-10 shows the format of the mechanism array on Alpha systems.

Figure 9-10 Mechanism Array on Alpha Systems

Table 9-11 describes the arguments in the mechanism array.

Table 9-11 Fields in the Alpha Mechanism Array

Argument	Description
CHF$IS_MCH_ARGS	Represents the number of quadwords in the mechanism array, not counting the argument count quadword. (The value contained in this argument is always 43.)
CHF$IS_MCH_FLAGS	Flag bits <63:0> for related argument mechanism information defined as follows for CHF$V_FPREGS: Bit <0>: When set, the process has already performed a floating-point operation and the floating-point registers stored in this structure are valid. If this bit is clear, the process has not yet performed any floating-point operations, and the values in the floating-point register slots in this structure are unpredictable.
CHF$PH_MCH_FRAME	The frame pointer (FP) in the procedure context of the establisher.
CHF$IS_MCH_DEPTH	Positive count of the number of procedure activation stack frames between the frame in which the exception occurred and the frame depth that established the handler being called.
CHF$PS_MCH_DADDR	Address of the handler data quadword if the exception handler data field is present (as indicated by PDSC.FLAGS.HANDLER_DATA_VALID); otherwise, contains zero.
CHF$PH_MCH_ESF_ADDR	Address of the exception stack frame (see the Alpha Architecture Reference Manual).
CHF$PH_MCH_SIG_ADDR	Address of the signal array. The signal array is a 32-bit (longword) array.
CHF$IH_MCH_SAVR nn	A copy of the saved integer registers at the time of the exception. The following registers are saved: R0, R1, and R16--R28. Registers R2--R15 are implicitly saved in the call chain.
CHF$FM_MCH_SAVF nn	A copy of the saved floating-point registers at the time of the exception or may have unpredictable data as described in CHF$IS_MCH_FLAGS. If the floating-point register fields are valid, the following registers are saved: F0, F1, and F10--F30. Registers F2--F9 are implicitly saved in the call chain.

For more information and recommendations about using the mechanism argument vector on Alpha systems, see Migrating to an OpenVMS AXP System: Recompiling and Relinking Applications. Note that this manual has been archived but is available on the OpenVMS Documentation CD-ROM.

9.8.5 Multiple Active Signals

A signal is said to be active until the routine that signaled regains control or until the stack is unwound or the image exits. A second signal can occur while a condition handler or a routine it has called is executing. This situation is called multiple active signals or multiple exception conditions. When this situation occurs, the stack scan is not performed in the usual way. Instead, the frames that were searched while processing all of the previous exception conditions are skipped when the current exception condition is processed. This is done in order to avoid recursively reentering a routine that is not reentrant. For example, Fortran code typically is not recursively reentrant. If a Fortran handler were called while another activation of that handler was still going, the results would be unpredictable.

A second exception may occur while a condition handler or a procedure that it has called is still executing. In this case, when the exception dispatcher searches for a condition handler, it skips the frames that were searched to locate the first handler.

The search for a second handler terminates in the same manner as the initial search, as described in Section 9.6.

If the SYS$UNWIND system service is issued by the second active condition handler, the depth of the unwind is determined according to the same rules followed in the exception dispatcher's search of the stack: all frames that were searched for the first condition handler are skipped.

Primary and secondary vectored handlers, on the other hand, are always entered when an exception occurs.

If an exception occurs during the execution of a handler that was established in the primary or secondary exception vector, that handler must handle the additional condition. Failure to do so correctly might result in a recursive exception loop in which the vectored handler is repeatedly called until the user stack is exhausted.

The modified search routine is best illustrated with an example. Assume the following calling sequence:

1. Routine A calls routine B, which calls routine C.
2. Routine C signals an exception condition (signal S), and the handler for routine C (CH) resignals.
3. Control passes to BH, the handler for routine B. The call frame for handler BH is located on top of the signal and mechanism arrays for signal S. The saved frame pointer in the call frame for BH points to the frame for routine C.
4. BH calls routine X; routine X calls routine Y.
5. Routine Y signals a second exception condition (signal T). Figure 9-11 illustrates the stack contents after the second exception condition is signaled.

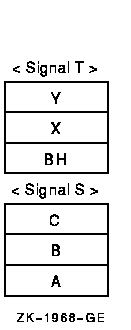

   Figure 9-11 Stack After Second Exception Condition Is Signaled

   ---


   Normally, the OpenVMS Condition Handling facility (CHF) searches all currently active frames for condition handlers, including B and C. If this happens, however, BH is called again. At this point, you skip the condition handlers that have already been called. Thus, the search for condition handlers should proceed in the following order:

   YH
   XH
   BHH (the handler for routine B's handler)
   AH

6. The search now continues in its usual fashion. The CHF examines the primary and secondary exception vectors, then frames Y, X, and BH. Thus, handlers YH, XH, and BHH are called. Assume that these handlers resignal.
7. The CHF now skips the frames that have already been searched and resumes the search for condition handlers in routine A's frame. The depths that are passed to handlers as a result of this modified search are 0 for YH, 1 for XH, 2 for BHH, and 3 for AH.

Because of the possibility of multiple active signals, you should be careful if you use an exception vector to establish a condition handler. Vectored handlers are called, not skipped, each time an exception occurs.

9.9 Types of Condition Handlers

On VAX systems, when a routine is activated, the first longword in its stack frame is set to 0. This longword is reserved to contain an address pointing to another routine called the condition handler. If an exception condition is signaled during the execution of the routine, the OpenVMS Condition Handling Facility uses the address in the first longword of the frame to call the associated condition handler.

On Alpha systems, each procedure, other than a null frame procedure, can have a condition handler potentially associated with it, identified by the HANDLER_VALID, STACK_HANDLER, or REG_HANDLER field of the associated procedure descriptor. You establish a handler by including the procedure value of the handler procedure in that field.

The arguments passed to the condition-handling routine are the signal and mechanism argument vectors, described in Section 9.8.2, Section 9.8.3, and Section 9.8.4.

Various types of condition handlers can be called for a given routine:

• User-supplied condition handlers
  You can write your own condition handler and set up its address in the stack frame of your routine using the run-time library routine LIB$ESTABLISH or the mechanism supplied by your language.
  On Alpha systems, LIB$ESTABLISH is not supported, though high-level languages may support it for compatibility.
• Language-supplied condition handlers
  Many high-level languages provide a means for setting up handlers that are global to a single routine. If your language provides a condition-handling mechanism, you should always use it. If you also try to establish a condition handler using LIB$ESTABLISH, the two methods of handling exception conditions conflict, and the results are unpredictable.
• System default condition handlers
  The operating system provides a set of default condition handlers. These take over if there are no other condition handler addresses on the stack, or if all the previous condition handlers have passed on (resignaled) the indication of the exception condition.

The operating system establishes the following default condition handlers each time a new image is started. The default handlers are shown in the order they are encountered when the operating system processes a signal. These three handlers are the only handlers that output error messages.

• Traceback handler
  The traceback handler is established on the stack after the catchall handler. This enables the traceback handler to get control first. This handler performs three functions in the following order:
  1. Outputs an error message using the Put Message (SYS$PUTMSG) system service. SYS$PUTMSG formats the message using the Formatted ASCII Output (SYS$FAO) system service and sends the message to the devices identified by the logical names SYS$ERROR and SYS$OUTPUT (if it differs from SYS$ERROR). That is, it displays the message associated with the signaled condition code, the traceback message, the program unit name and line number of the statement that signaled the condition code, and the relative and absolute program counter values. (On a warning or error, the number of the next statement to be executed is displayed.)
  2. Issues a symbolic traceback, which shows the state of the routine stack at the time of the exception condition. That is, it displays the names of the program units in the calling hierarchy and the line numbers of the invocation statements.

  3. Decides whether to continue executing the image or to force an exit based on the severity field of the condition value:

     Severity	Error Type	Action
     1	Success	Continue
     3	Information	Continue
     0	Warning	Continue
     2	Error	Continue
     4	Severe	Exit


     The traceback handler is in effect if you link your program with the /TRACEBACK qualifier of the LINK command (the default). Once you have completed program development, you generally link your program with the /NOTRACEBACK qualifier and use the catchall handler.
• Catchall handler
  The operating system establishes the catchall handler in the first stack frame and thus calls it last. This handler performs the same functions as the traceback handler except for the stack traceback. That is, it issues an error message and decides whether to continue execution. The catchall is called only if you link with the /NOTRACEBACK qualifier. It displays the message associated with the condition code and then continues program execution or, if the error is severe, terminates execution.
• Last-chance handler
  The operating system establishes the last-chance handler with a system exception vector. In most cases, this vector contains the address of the catchall handler, so that these two handlers are actually the same. The last-chance handler is called only if the stack is invalid or all the handlers on the stack have resignaled. If the debugger is present, the debugger's own last-chance handler replaces the system last-chance handler.

Displays the message associated with the condition code and then continues program execution or, if the error is severe, terminates execution. The catchall handler is not invoked if the traceback handler is enabled.

In the following example, if the condition code INCOME_LINELOST is signaled at line 496 of GET_STATS, regardless of which default handler is in effect, the following message is displayed:

%INCOME-W-LINELOST, Statistics on last line lost due to CTRL/Z

If the traceback handler is in effect, the following text is also displayed:

%TRACE-W-TRACEBACK, symbolic stack dump follows module name routine name line rel PC abs PC GET_STATS GET_STATS 497 00000306 00008DA2 INCOME INCOME 148 0000015A 0000875A 0000A5BC 0000A5BC 00009BDB 00009BDB 0000A599 0000A599

Because INCOME_LINELOST is a warning, the line number of the next statement to be executed (497), rather than the line number of the statement that signaled the condition code, is displayed. Line 148 of the program unit INCOME invoked GET_STATS.

9.9.2 Interaction Between Default and User-Supplied Handlers

Several results are possible after a routine signals, depending on a number of factors, such as the severity of the error, the method of generating the signal, and the action of the condition handlers you have defined and the default handlers. Given the severity of the condition and the method of signaling, Figure 9-12 lists all combinations of interaction between user condition handlers and default condition handlers.

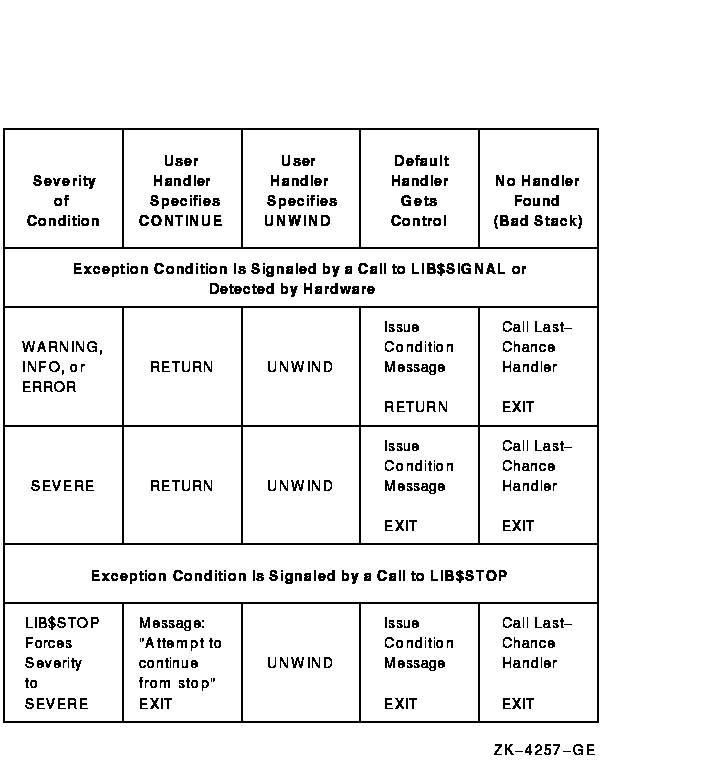

Figure 9-12 Interaction Between Handlers and Default Handlers

9.10 Types of Actions Performed by Condition Handlers

• Signal a condition
  Signaling a condition initiates the search for an established condition handler.
• Continue
  The condition handler may or may not be able to fix the problem, but the program can attempt to continue execution. The handler places the return status value SS$_CONTINUE in R0 and issues a RET instruction to return control to the dispatcher. If the exception was a fault, the instruction that caused it is reexecuted; if the exception was a trap, control is returned at the instruction following the one that caused it. A condition handler cannot continue if the exception condition was signaled by calling LIB$STOP.
  Section 9.12.1 contains more information about continuing.
• Resignal
  The handler cannot fix the problem, or this condition is one that it does not handle. It places the return status value SS$_RESIGNAL in R0 and issues a RET instruction to return control to the exception dispatcher. The dispatcher resumes its search for a condition handler. If it finds another condition handler, it passes control to that routine. A handler can alter the severity of the signal before resignaling.
  Section 9.12.2 contains more information about resignaling.
• Unwind
  The condition handler cannot fix the problem, and execution cannot continue while using the current flow. The handler issues the Unwind Call Stack (SYS$UNWIND) system service to unwind the call stack. Call frames can then be removed from the stack and the flow of execution modified, depending on the arguments to the SYS$UNWIND service.
  When a condition handler has already called SYS$UNWIND, any return status from the condition handler is ignored by the CHF. The CHF now unwinds the stack.
  Unwinding the routine call stack first removes call frames, starting with the frame in which the condition occurred, and then returns control to an earlier routine in the calling sequence. You can unwind the stack whether the condition was detected by hardware or signaled using LIB$SIGNAL or LIB$STOP. Unwinding is the only way to continue execution after a call to LIB$STOP.
  Section 9.12.3 describes how to write a condition handler that unwinds the call stack.
• Perform a nonlocal GOTO unwind
  On Alpha systems, a GOTO unwind operation is a transfer of control that leaves one procedure invocation and continues execution in a prior (currently active) procedure. This unified GOTO operation gives unterminated procedure invocations the opportunity to clean up in an orderly way. See Section 9.10.2 for more information about GOTO unwind operations.

One type of action a condition handler can take is to unwind the procedure call stack. The unwind operation is complex and should be used only when control must be restored to an earlier procedure in the calling sequence. Moreover, use of the SYS$UNWIND system service requires the calling condition handler to be aware of the calling sequence and of the exact point to which control is to return.

SYS$UNWIND accepts two optional arguments:

• The depth to which the unwind is to occur. If the depth is 1, the call stack is unwound to the caller of the procedure that incurred the exception. If the depth is 2, the call stack is unwound to the caller's caller, and so on. By specifying the depth in the mechanism array, the handler can unwind to the procedure that established the handler.
• The address of a location to receive control when the unwind operation is complete, that is, a PC to replace the current PC in the call frame of the procedure that will receive control when all specified frames have been removed from the stack.

If no argument is supplied to SYS$UNWIND, the unwind is performed to the caller of the procedure that established the condition handler that is issuing the SYS$UNWIND service. Control is returned to the address specified in the return PC for that procedure. Note that this is the default and the normal case for unwinding.

Another common case of unwinding is to unwind to the procedure that declared the handler. On VAX systems, this is done by using the depth value from the exception mechanism array (CHF$L_MCH_DEPTH) as the depth argument to SYS$UNWIND. On Alpha systems, this is done by using the depth value from the exception mechanism array (CHF$IS_MCH_DEPTH) as the depth argument to SYS$UNWIND.

Therefore, it follows that the default unwind (no depth specified) is equivalent to specifying CHF$L_MCH_DEPTH plus 1 on VAX systems. On Alpha systems, the default unwind (no depth specified) is equivalent to specifying CHF$IS_MCH_DEPTH plus 1. In certain instances of nested exceptions, however, this is not the case. Compaq recommends that you omit the depth argument when unwinding to the caller of the routine that established the condition handler.

Figure 9-13 illustrates an unwind situation and describes some of the possible results.

The unwind operation consists of two parts:

1. In the call to SYS$UNWIND, the return PCs saved in the stack are modified to point into a routine within the SYS$UNWIND service, but the entire stack remains present.
2. When the handler returns, control is directed to this routine by the modified PCs. It proceeds to return to itself, removing the modified stack frames, until the stack has been unwound to the proper depth.

For this reason, the stack is in an intermediate state directly after calling SYS$UNWIND. Handlers should, in general, return immediately after calling SYS$UNWIND.

During the actual unwinding of the call stack, the unwind routine examines each frame in the call stack to see whether a condition handler has been declared. If a handler has been declared, the unwind routine calls the handler with the status value SS$_UNWIND (indicating that the call stack is being unwound) in the condition name argument of the signal array. When a condition handler is called with this status value, it can perform any procedure-specific cleanup operations required. For example, the handler should deallocate any processwide resources that have been allocated. Then, the handler returns control to the OpenVMS Condition Handling facility. After the handler returns, the call frame is removed from the stack.

When a condition handler is called during the unwinding operation, the condition handler must not generate a new signal. A new signal would result in unpredictable behavior.

Thus, in Figure 9-13, handler B can be called a second time, during the unwind operation. Note that handler B does not have to be able to interpret the SS$_UNWIND status value specifically; the RET instruction merely returns control to the unwind procedure, which does not check any status values.

Handlers established by the primary, secondary, or last-chance vector are not called, because they are not removed during an unwind operation.

While it is unwinding the stack, the OpenVMS Condition Handling facility ignores any function value returned by a condition handler. For this reason, a handler cannot both resignal and unwind. Thus, the only way for a handler to both issue a message and perform an unwind is to call LIB$SIGNAL and then call $UNWIND. If your program calls $UNWIND before calling LIB$SIGNAL, the result is unpredictable.

When the OpenVMS Condition Handling facility calls the condition handler that was established for each frame during unwind, the call is of the standard form, described in Section 9.2. The arguments passed to the condition handler (the signal and mechanism argument vectors) are shown in Section 9.8.2, Section 9.8.3, and Section 9.8.4.

On VAX systems, if the handler is to specify the function value of the last function to be unwound, it should modify the saved copies of R0 and R1 (CHF$L_MCH_SAVR0 and CHF$L_MCH_SAVR1) in the mechanism argument vector.

On Alpha systems, the handler should modify the saved copies of R0 and R1 (CHF$IH_MCH_SAVRnn).

R0 and R1 are restored from the mechanism argument vector at the end of the unwind.

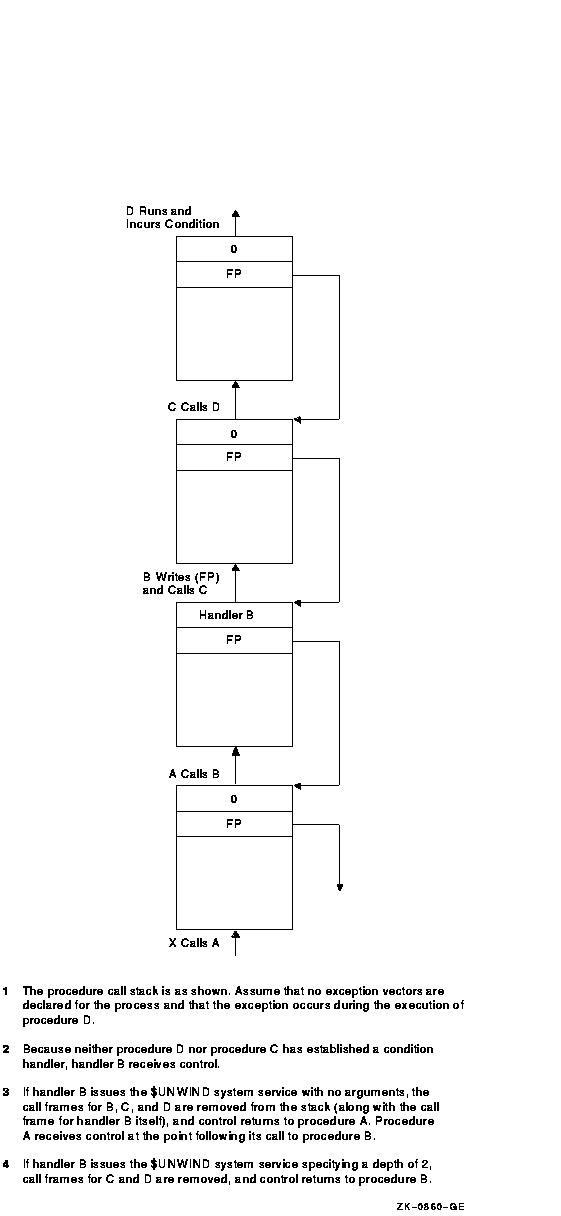

Figure 9-13 Unwinding the Call Stack
